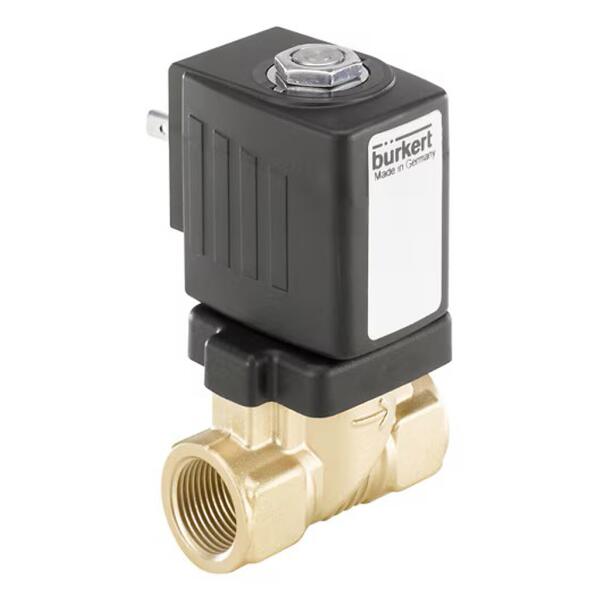

Type 6213 - Servo-assisted 2/2-way solenoid valve (285413)

SKU: BUR.285413
GTIN: 4053913071458
HAN: 285413
Manufacturers: Christian Bürkert GmbH & Co. KG

» The pictorial representations of the products may differ from the actual design. Please note the technical features and data sheets!

77,90 €

excl. 19% VAT , plus

Low stock level
Delivery time: 7 - 9 working days** (DE - int. shipments may differ)

Description
GPSR Information

The servo-assisted Burkert 2/2-way diaphragm valve type 6213 in detail

The 6213 EV valve is a servo-assisted diaphragm valve of the S.EV series. The diaphragm spring coupling supports the opening process of the valve. In its standard version, the valve is suitable for use in liquids. A minimum differential pressure is required for complete opening. A special version (HP00) which opens the valve without differential pressure is available for gas and vacuum applications. Various diaphragm material combinations are available depending on the application.

The range of housings includes brass, stainless steel and gunmetal. Dezincification-resistant brass is available for other markets. To reduce power consumption in operation, coils with Kick and Drop electronics assembly (double coil technology) are available.

Servo-assisted diaphragm valve with nominal diameter of up to DN 40
Spring coupled diaphragm opens without differential pressure
Damped design for low noise
High flow rate with compact design
Energy-saving double coil technology with kick and drop variant

Product variants described in the data sheet may differ from the product presentation and description.

Temperature medium min/max:

-10,00 °C - 80,00 °C
Seat seal material:

NBR (nitrile rubber)
Port connection 1 type:

Inner thread - G3/8
Valve seat material medium-contact:

Brass
Voltage min/max:

42,00 V - 42,00 V
Valve function:

A - normally closed - inlet port 1 (P/NC)
Valve construction:

Valve complete
Main valve orifice 1 (P) (mm):

10,00 mm (3/8 Zoll)
Rated power:

8 W
installation length:

50 mm
AC voltage:

Yes
DC voltage:

No
Nominal pressure (DIN EN 1333):

PN 10
Protection class IP (max. with suitable connection):

IP65
Ambient temperature min/max:

-10 °C - 55 °C
Nominal pressure min/max:

0,00 bar - 10,00 bar
Shipping weight:

0,35 kg
Item weight:

0,35 kg
Dimensions ( Length × Width × Height ):

12,80 × 7,10 × 8,00 cm
