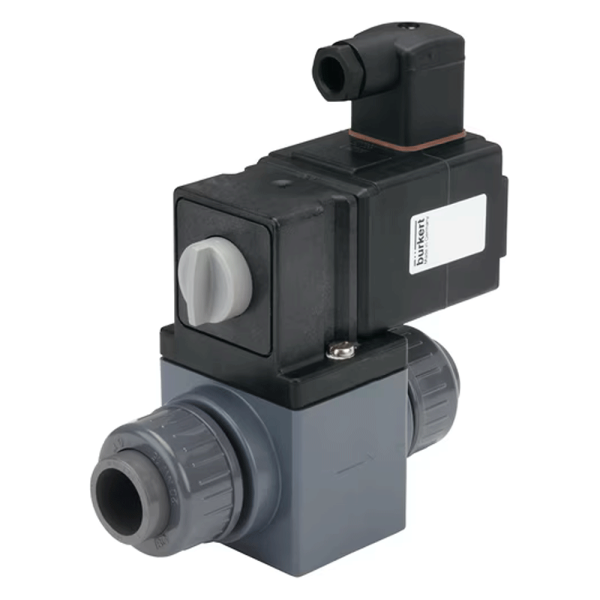

Under article number 463450 we supply the direct-acting Burkert toggle valve Type 0131 (2/2-way, normally closed (NC)) with a PVC plastic body, internal thread NPT1/2 and FKM seal in orifice DN 15. Thanks to the diaphragm separation between actuator and body, the solenoid actuator does not come into contact with the medium.
How the Burkert valve Type 0131 DN 15 switches
When de-energised, the flow path from port 1 (P) to port 2 (A) is closed; the valve only opens when the coil is energised. The valve is direct-acting and switches from 0 bar, i.e. without minimum pressure; the pressure range of this version extends to 1 bar, the Kv value for water is 4.5 m³/h. According to the data sheet, it opens in 10 to 20 ms and closes in 40 to 60 ms. The manual override with locking function simplifies commissioning and maintenance.
Electrical connection and coil
The coil for 24 V UC (AC/DC) is moulded in chemically highly resistant epoxy and block-screwed, which makes it vibration-proof. The integrated kick-and-drop electronics reduce the power after pull-in (145 W) to 10 W during operation. It is connected via plug contacts to DIN EN 175301-803 form A; with a cable plug, the valve achieves IP65. Plastic bodies are connected to the line via union nut and connection fitting.
Technical data at a glance
Circuit function A, 2/2-way, normally closed (NC) · Orifice DN 15 · Port connection internal thread NPT1/2 · Pressure range 0–1 bar · Kv value water 4.5 m³/h · Body PVC · Seal FKM · Medium temperature -10 °C to +50 °C · Ambient temperature -10 °C to +50 °C · Voltage 24 V UC (AC/DC) ±10 % · Plug form A · IP65 with cable plug · Weight 1.043 kg
What valve 463450 is suited for
It switches aggressive and non-aggressive liquids, neutral gases and aggressive gases according to their diffusion properties, up to a viscosity of 37 mm²/s. It can be installed in any position, preferably with the actuator facing up. As a dealer listed by Burkert, we source the valve directly from the manufacturer.
